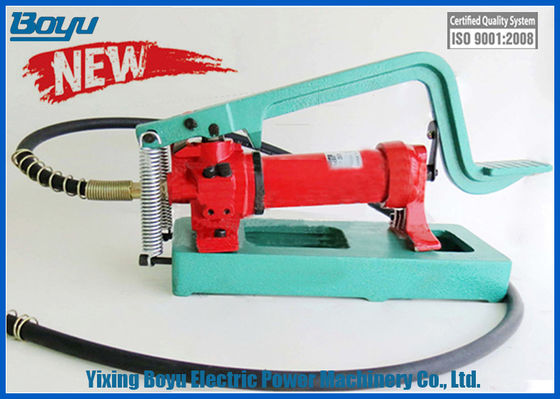

720cc High Pressure Hydraulic Pedal Pump 11kg Transmission Line Stringing Tools

Name: 720cc High Pressure Hydraulic Pedal Pump 11kg Transmission Line Stringing Tools
Brand: Boyu
SKU: TYCFP
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (173 reviews)

تصویر بزرگ : 720cc High Pressure Hydraulic Pedal Pump 11kg Transmission Line Stringing Tools

جزئیات محصول:

Place of Origin:	China
نام تجاری:	Boyu
گواهی:	ISO9001
Model Number:	TYCFP

پرداخت:

Minimum Order Quantity:	10 sets
قیمت:	Negotiable
Packaging Details:	container
Delivery Time:	25-30days

مخاطب

توضیحات محصول جزئیات

OEM:	available	After sales service:	available
Reservoir Capacity:	720cc	Oil delivery(cc/stroke):	low:12.26;high:2.26
Weight:	11kg
برجسته:	, , overhead line tools

720cc High Pressure Hydraulic Pedal Pump 11kg Transmission Line Stringing Tools

Quick details:

1. Transmission Line Stringing Equipment Accessories & Tools
2. Super High Pressure Hydraulic Pedal Pump
3. Reservoir Capacity:720cc
4. Oil delivery(cc/stroke): low:12.26;high:2.26
5. Reservoir Capacity:720cc
6. Boyu Brand

Description:

Pump is designed in two stages of high and low speed for quick oil output. Even if lack of electric power, operation could be carried conveniently. It is the same as the electric pump in any working pressure and function.
Pedal operation. The operator could work while hands griping tool or object.
Pressure could be stopped in middle. Inner designed high pressure safely unit project hydraulic vale.
Wide hydraulic pump base for fixing frame could improve stability of operation at work.
Oil pipe fitted with quick coupling could be ordered in any length. It could be fitted with pressure meter (to be ordered).
Oil pipe coupling fitted with pt3/8” thread.

Specification:

Model

Max pressure

Pressure/Oil Delivery

( kgf/cm^2 /cc)

Capacity

Dimension

Mass without oil

(bar)

1^st stage

2^nd stage

(cc)

(Kg)

TYCFP800

700

0-20/12.26

20-700/2.26

720

520*140*200

Maufacturer Introduction

Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are at the east of China, near Shanghai seaport, Nanjin airport, Hangzhou airport, about 2~3 hours by car.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
