Durable High Pressure Hydraulic Valves By Oid Media , Max Pressure 31.5Mpa

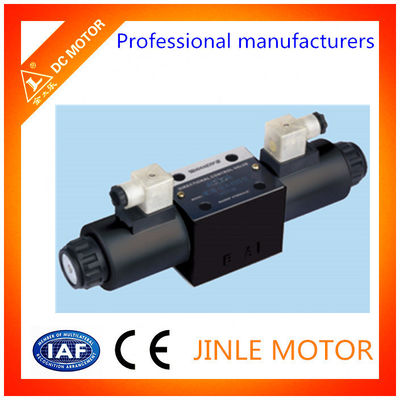

تصویر بزرگ : Durable High Pressure Hydraulic Valves By Oid Media , Max Pressure 31.5Mpa

جزئیات محصول:

Place of Origin:	WUXI CHINA
نام تجاری:	JINLE
گواهی:	CE/ISO9001:2000
Model Number:	DSG-03

پرداخت:

Minimum Order Quantity:	10pcs
قیمت:	negotiable
Packaging Details:	common package
Delivery Time:	with 40 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs/month

مخاطب

توضیحات محصول جزئیات

Standard or Nonstandard:	Nonstandard	Structure:	Control
Shaft Diameter:	accordingly	color:	according to your requirements
Media:	oil	Material:	Casting
Pressure:	low pressure
برجسته کردن:	hydraulic solenoid valve,hydraulic control valve

High Pressure Hydraulic Valves Hydraulic solenoid valve by oid media

Specifications

Hydraulic solenoid valve
1, Max pressure:31.5Mpa
2, Flow: 40~100l/min

Hydraulic solenoid valve,Hydraulic directional control valve,Directional control valve,3 way directional hydraulic valve,Hydraulic soleniod valves,Solenoid valves,Hydraulic valves,Hydraulic solenoid control valves,Hydraulic check valves,piloet opreated check valves,Modular Relief Valve,Hydraulic valves,Pressure Relief Valves

D5	-02	-2	B	2	L	-A1	5	-
SERIES NUMBER	VALVE SIZE	NUMBER OF VALVE POSITION	SPOOL SPRING ARRANGEMENT	SPOOL TYPE	COIL REVERSE POSITION	COIL TYPE	FREQU- ENCIES	LAMP
D4 JIS TYPE TERMINAL BOX TYPE D5 DIN TYPE PLUG IN CONNECTOR	02 NG6	2	B:SPRING OFFSET D:POSITION MECHANIC	2.3.8	L:REVERSE NONE STANRARD	AC A1:AC 110V A2:AC 220V A3:AC 380V DC D1:DC 12V D2:DC 24V RF R1:RF 110V R2:RF 220V	5:50HZ 6:60HZ	None: STANDARD LAMPWITH B:LAMP WITHOUT
	02 NG6	3	C:SPRING CENTER	2,3,4,5 6,7,8,9 .10,11,12
	03 NG10	2	B:SPRING OFFSET D:POSITION MECHANIC	2.3.8
	03 NG10	3	C:SPRING CENTER	2,3,4,5 6,7,8,9 .10,11,12

SPECIFCATION

SPOOL TYPE	FLOW RANGE l/min
	D4-02		D4-03
	RATED RLOW	MAX.FLOW	RATED FLOW	MAX.FLOW
3C2 3C4 3C10	40	60	60	100
3C5 3C3 3C60	30	40	50	80
2B2 2B3 2B8	40	60	60	100
2D2 2D3	40	60	60	100
(kgf/cm2) MAX.PRESSURE	315(3C5,3C 60 250)
(kgf/cm2) MAX.BACK PRESSURE	160
MAX.OPERATING FREQUENCIES	AC.DC:240CPM RF:120CPM
kgf/cm2) TEMP.RANGE	5 °C-60°C
cSf VISCOSITY	20-300 cst
kgs WEIGHT	(S) SINGLE	1.5(AC)	1.6(DC,RF)	3.3(AC)
kgs WEIGHT	(D)DOUBLE	1.9(AC)	2.0(DC,RF)	4.0(AC)
