| Model: | ZYB-50/70D | Flow Rate (L/min): | 50 |
|---|---|---|---|
| Pressure (MPa): | 0-7 | Driving Power (KW): | 11 |
| Water cement radio (water:cement): | ≥0.75 | Weight (kg): | 650 |
| Overall Dimensions: | 1500*960*1020 | ||
| برجسته: | pump equipment,pressure pumping equipment,pressure pumping equipment |
||
Hydraulic Type High Pressure Grouting Injection Pump
Hydraulic Type High Pressure Grouting Injection Pump
High Pressure Grouting Injection Pump
High Pressure Grout Pump
the grouting pump is according to the project need to develop a series of products, the products with advanced technology, simple operation, function is perfect.Widely used in tunnels, subways and other underground engineering waterproof, large faults, deep hole, highway foundation reinforcement, plugging and hydropower dam reinforcement, sealing and ground buildings foundation grouting reinforcement, slope bolting grouting construction etc
Technical parameters
|
Model Number |
Flow Rate (L/min) |
Pressure (MPa) |
Driving Power (KW) |
Water cement radio (water:cement) |
Weight (kg) |
Overall Dimensions |
|
ZYB-50/70D |
50 |
0-7 |
11 |
≥0.75 |
650 |
1500*960*1020 |
|
ZYB-70/80D |
70 |
0-8 |
11 |
≥0.75 |
650 |
1500*960*1020 |
|
ZYB-70/100D |
70 |
0-10 |
11 |
≥0.75 |
650 |
1500*960*1020 |
|
ZYB-100/60D |
100 |
0-6 |
11 |
≥0.75 |
650 |
1500*960*1020 |
|
ZYB-35/170D |
35 |
0-17 |
11 |
≥0.75 |
650 |
1500*960*1020 |

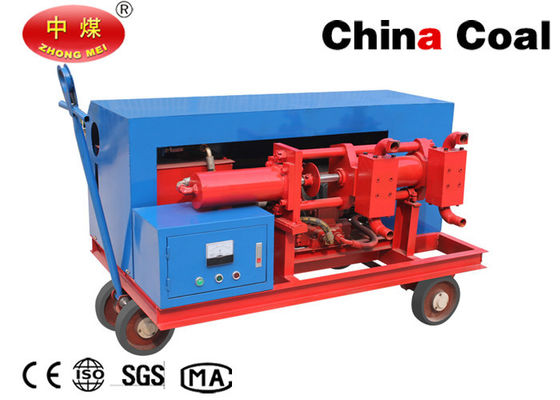

Feature Photo
